Sample Map Editor

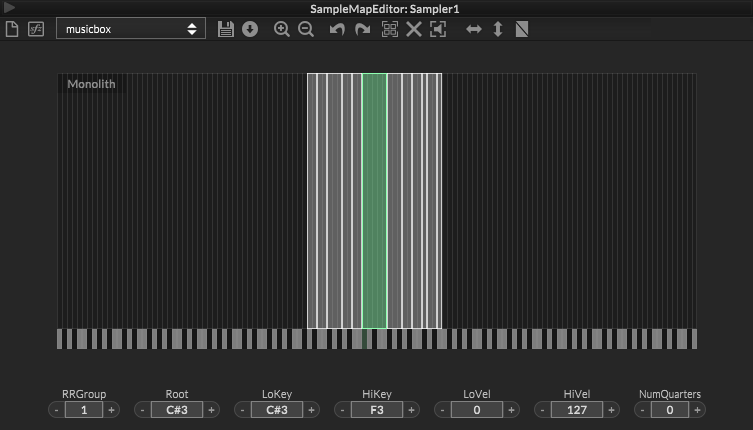

With the Sample Map Editor you can map your samples and save them as a SampleMaps . You can add samples to the map with drag & dropping samples from your OS' filebrowser onto the map.

Then select one of the three mapping functions:

Editing the Samplemap

After you added your samples to the SampleMap it's possible to drag them around in the Map Editor and adjust their map properties with the SampleMap Value Setters and edit their audio-related properties in the adjacent Sample Editor .

In the Sample Map Editor you can use some of the usual suspected Action Keys while dragging:

After you're finished with editing you can save the SampleMap (Ctrl+s) and give it a filename. The SampleMap will be saved into the projects SampleMaps Folder and will from this moment on be available in the SampleMap Selector in the toolbar and accessible with the scripting capabilities of HISE. Example: Minimal Sampler

The next step would be to compress the SampleMaps samples into a single big monolith-file (HLAC) for improved loading-time and reduced file-size. Learn more about this here: Compress and Export

SampleMap Value Setters

Name Description
RR Group the group index for round robin / random group start behaviour. Although it's called RRGroup, it can be used for any other purpose (like dynamic X-Fade or legato sample triggering). Think of this as an additional z-axis in the note/velocity coordinate system.
RootNote the root note. This is the reference pitch note.
HiKey the highest mapped key.
LoKey the lowest mapped key.
LoVel the lowest mapped velocity.
HiVel the highest mapped velocity.
LowerVelocityXFade Change the lower Velocity X-Fade
UpperVelocityXFade Change the upprt Velocity X-Fade

Right click on the property to open a big slider that allows finer adjustment

Toolbar

Filename Token Parser

The Filename Token Parser parses parts of the samples filenames into tokens . You can then map these tokens to specific properties of the sample map.

Let's say we have two sample with these filenames:

First we split the filename with the Separator (the default separator is _ ). Then we map the tokens to specific properties of the sample map:

The Rows

String

The separated tokens of the first filename (it will iterate over all files, but only display the first filename tokens so that you can see what the parser is doing)

Property

The Property column decides to which SampleMap property the token is assigned to.

Option Property Datatype
Ignore - do nothing with this token. ignore the token information. (default)
Single Key LoKey , HiKey & Root sets the MIDI NoteNumber. Use a single "Number" (0-127) or a "Note name" in the format D#3 (middle octave = 3)
RR Group RRGroup moves the sample into the specified RRGroup (starting with Group 1), Use "Number" or a "Custom" data type for this.
Velocity Spread LoVel & HiVel spreads the velocity across the whole range divided by the amount of found "Custom" items (pp,mp,ff).
Velocity Range LoVel & HiVel spreads the velocity across a range (_1-63_). You must use the data type "Number with Range" or "Custom" for this mode.
Low Velocity LoVel sets the lower velocity value, independently. use it together with High Velocity . "Number" only
High Velocity HiVel set the high velocity value. "Number" only
Velocity Value LoVel & HiVel maps each samples velocity to a single value ( LoVel: , HiVel: +1 )

Data Type

The Data Type column defines as which data type the token should be interpreted. The result is always a number, or a space separated number list (Values).

Data Type Description Items Values
Number Uses the number received from the token - -
Number with Range Uses two numbers. base and a upper limit (0-56) to define a range. (for Velocity Range , exclusively) the upper limit as number -
Note Name If the token is a Note Name (format: "D#3"), use this data type to convert it to the right midi note number (middle octave is 3). - -
Custom
 Maps any string in the item list to a number in the value list. Example: RR1 RR2 and 1 2 will map RR1 to RRGroup 1 and RR2 to RRGroup 2. the string token list (separated by space)
 the number list (separated by space)
Fixed Value Sets a fixed value that can be entered in the Items&Values columns number number
Ignored Ignores the token. You should not have to use this directly, as it's the datatype for ignored tokens. - -

In case that you want to store the parser settings for further use: You can Copy & Paste or Save & Load the Filename Token Parsers settings in the top of the Popup.

The Solution to the example:

Cello_stacc_RR1_D#2_p.wav

Cello_stacc_RR2_C3_f.wav

Token Property Data Type
Cello Ignore Ignored
stacc Ignore Ignored
RR1 RRGroup Custom
D#2 Single Key Note name
p Velocity Spread Custom

SFZ Importer

SFZ is a free file exchange format for samplers. However, HISE is not designed to be a SFZ sample player. The SFZ parser makes it more easy to transfer other sample formats to HISE . Although there are opcodes for almost any property of a sampler, only these opcodes are supported:

sample, lokey, hikey, lovel, hivel, offset, end, loop_mode, loopstart, loopend, tune, pitch_keycenter, volume, group_volume, pan, groupName, key

These are pretty much all opcodes thich relate to a HISE sampler property. If you want to convert NI KONTAKT libraries, check out the Chicken Translator SFZ edition, as this is the preferred way of migrating KONTAKT libraries

Loading SFZ files is remarkably easy, just use the SFZ button, or drop a .sfz file on the sampler. If there are multiple groups in the SFZ file, you will see a dialog window where you can consolidate the sfz groups to RR Groups or ignore dedicated sfz groups (and drop the same sfz on another sampler with a inverted selection to split the sfz file to two independant samplers")

Scripting

If you want to access attributes of SampleMaps or change SampleMap aspects with scripting, use a typed Sampler script reference. (Shortcut: Right click on the top bar of the Sampler)

const var Sampler2 = Synth.getSampler("Sampler1");
